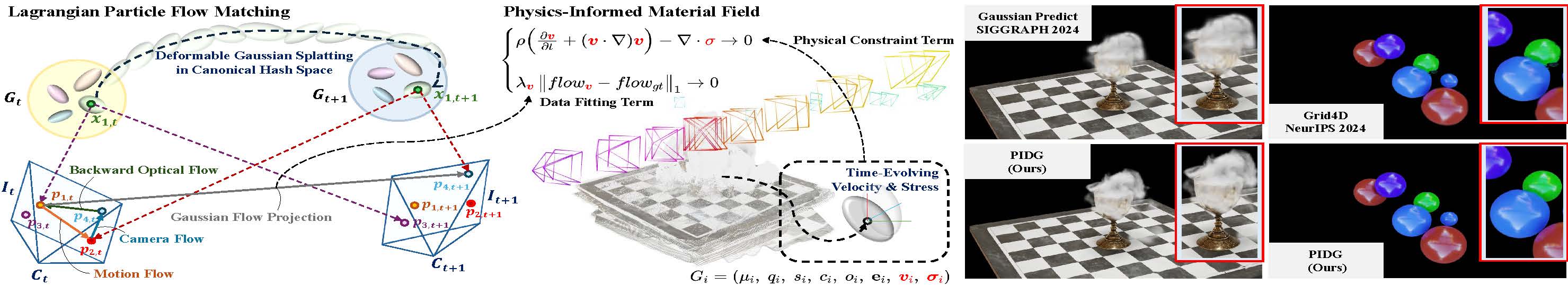

Insights: Physics-Informed Deformable Gaussian Splatting achieves physically consistent and generalisable monocular dynamic novel-view synthesis effects, performing excellently in physical scenarios such as fluid dynamics and elastic mechanics.
Recently, 3D Gaussian Splatting (3DGS), an explicit scene representation technique, has shown significant promise for monocular dynamic-scene novel-view synthesis. However, purely data-driven approaches struggle to capture the diverse physics-driven motion patterns in real scenes. To bridge this gap, we propose a differentiable physics-informed deformable Gaussian splatting framework that unifies constitutive laws under continuum mechanics. Methodologically, we model each Gaussian particle as a Lagrangian material point with time-varying constitutive parameters, using 2D projections of 3D observations as proxy supervision. Specifically, we adopt static-dynamic decoupled 4D decomposed hash encoding to reconstruct geometry and motion efficiently. Subsequently, we enforce the Cauchy momentum residual as a physics constraint, enabling independent prediction of each particle’s velocity and constitutive stress via a physics-informed material field. Finally, we further supervise data fitting by matching Lagrangian particle flow to camera-compensated optical flow, which accelerates convergence and improves generalization. Experiments on a custom physics-driven dataset as well as on existing synthetic and real-world benchmarks demonstrate gains in physical consistency and generalization for monocular dynamic scene reconstruction.

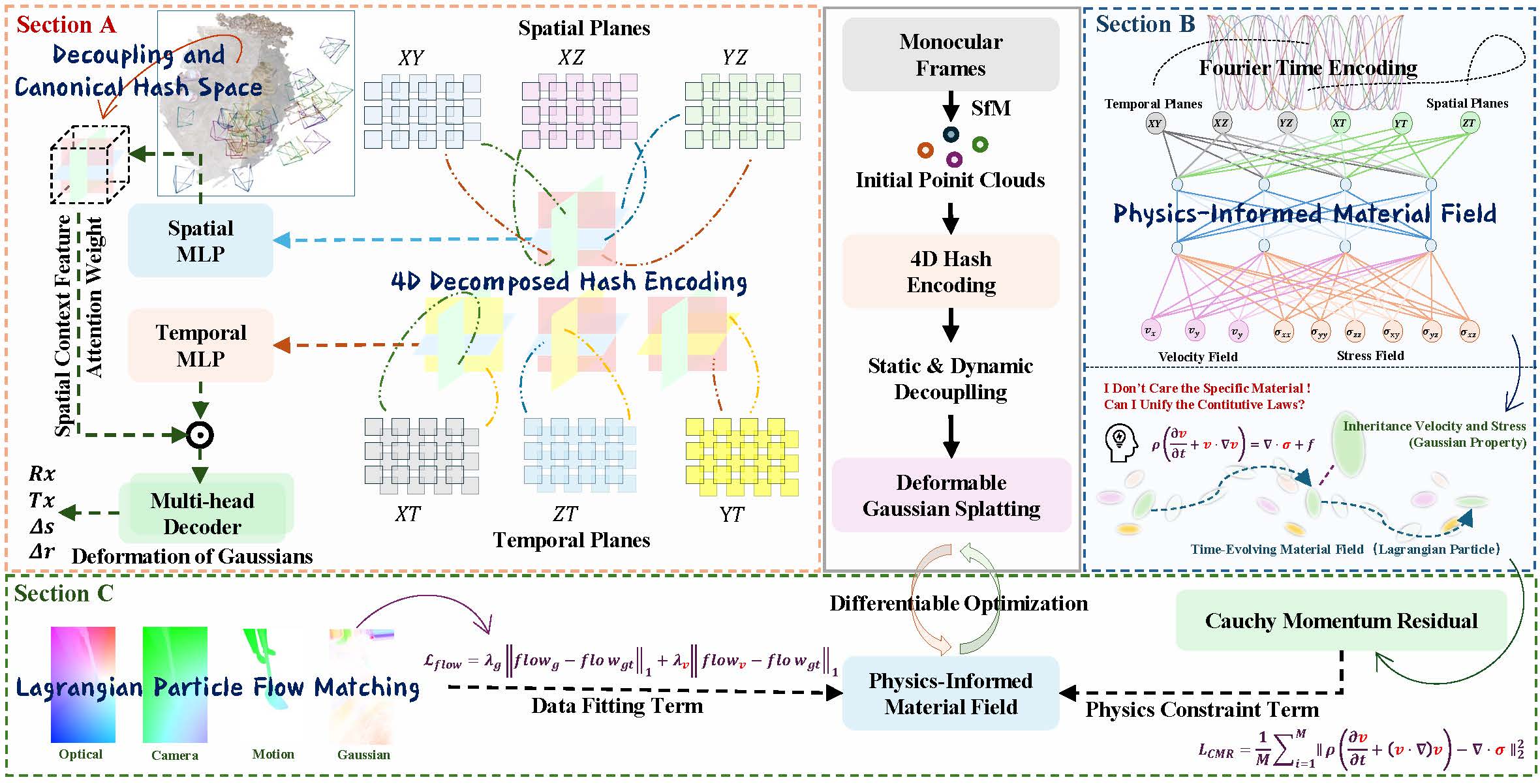

Overview of Physics-Informed Deformable Gaussian Splatting. It integrates dynamic reconstruction in the canonical hash space (Sec. 4.1), physics-informed material fields (Sec. 4.2), and Lagrangian particle flow matching (Sec. 4.3) to achieve differentiable and physically consistent monocular dynamic video reconstruction.

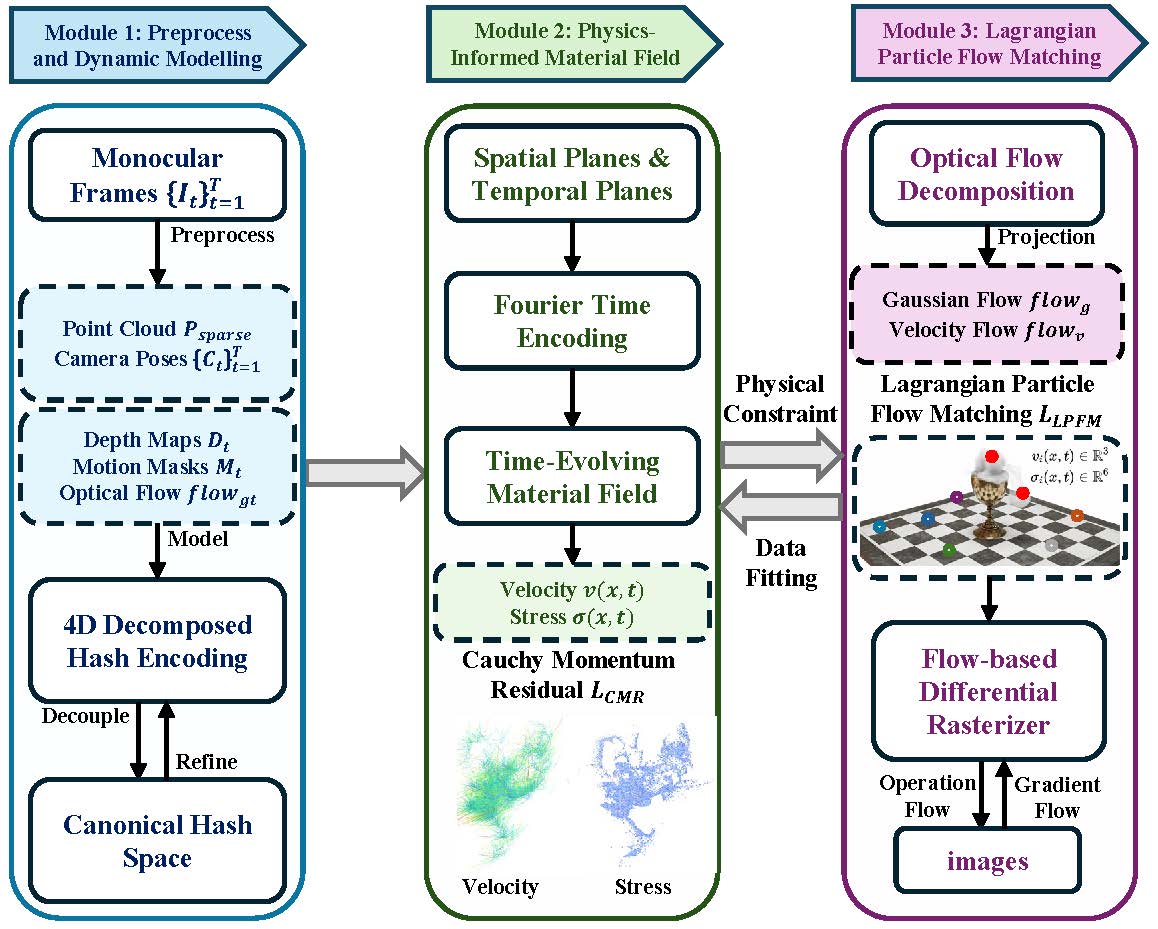

Network Architectures. Top: Training pipeline of PIDG, including preprocessing and dynamic modeling, physics-informed material field, and Lagrangian particle flow matching. Bottom: Network architecture of PIDG with 4D decomposed hash encoding in a static-dynamic decoupled canonical hash space.
